MVCC Conductor System
Covered ACSR, AAAC, AL-7, aluminium or high-temperature conductor for overhead distribution.
Covered Conductors
APAR Medium Voltage Covered Conductors
A durable overhead distribution solution designed to reduce outages caused by vegetation, conductor clashing, pollution and severe weather.
Voltage range11 kV to 132 kV
Operating temperatureUp to 95 C
Conductor optionsACSR / AAAC / AL-7 / AL
StandardsEN 50397-1 and IEC 61089
Portfolio Overview
Engineered for the Application
APAR MVCC places bonded, weather-resistant insulation around an overhead conductor. The co-extruded construction includes optional water blocking, a semiconducting screen, XLPE inner insulation and a UV-resistant anti-tracking outer layer.
AL59 ACS Covered Conductor
High-current, low-resistivity covered conductor engineered for longer spans and reduced sag.

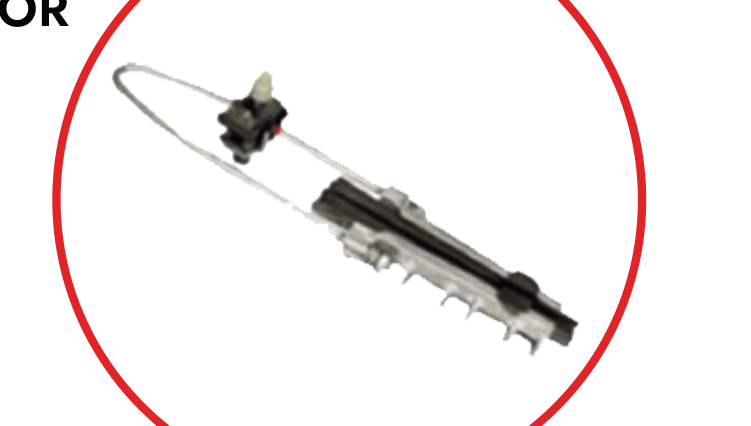

Suspension Clamps
Insulating, climate-resistant support hardware with thermoplastic locking components.

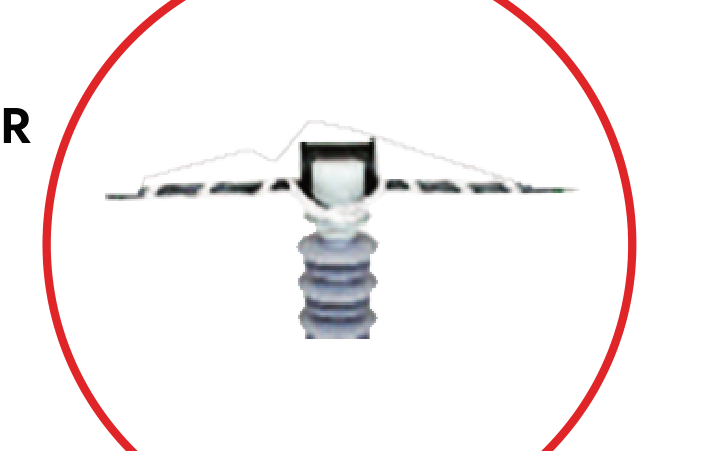

Anchoring Clamps
Ready-to-use dead-end clamps with thermoplastic wedges and tracking-protection provisions.

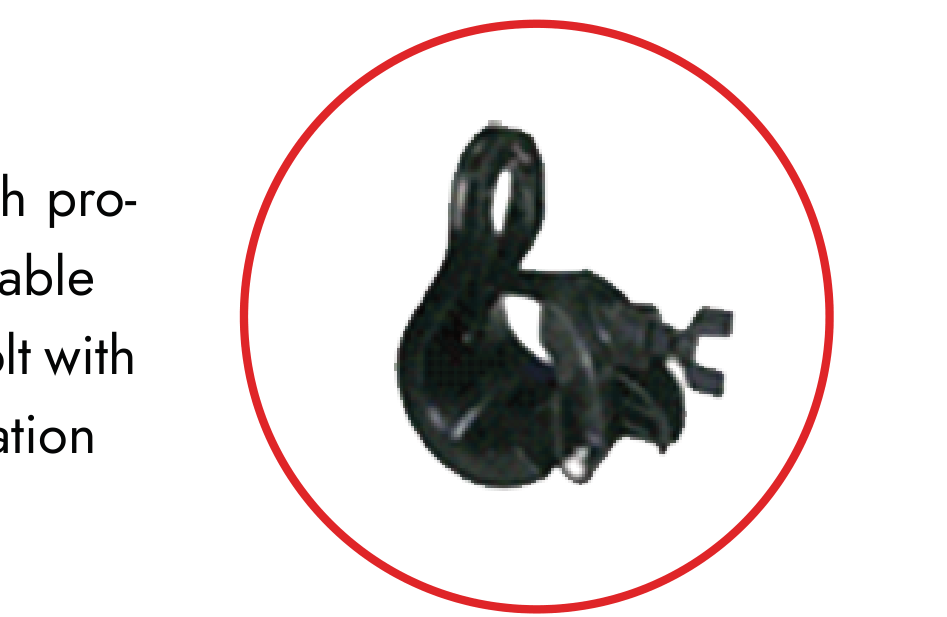

Piercing Connectors
Waterproof covered-to-covered and bare-to-covered connection options.
Pre-insulated Junction Sleeves
Water-tight aluminium-alloy junction sleeves for AAC, AAAC and ACSR covered conductors.

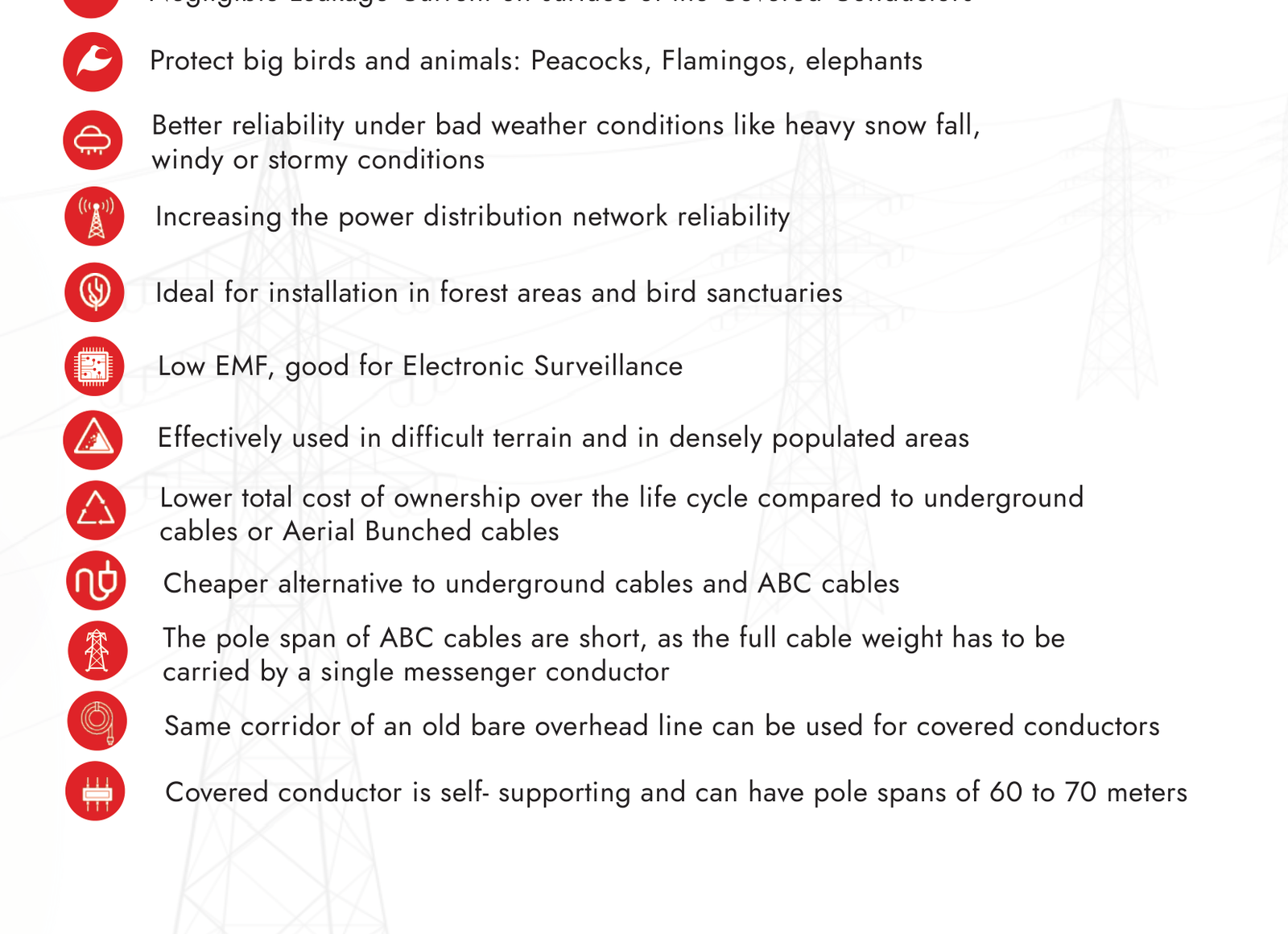

Where It Fits
Typical Applications
- Forest and vegetation corridors
- Coastal, polluted and high-dust zones
- Road, rail and river crossings
- Dense residential and industrial distribution
Selection Notes
Standards & Configuration
- SS-EN 50397-1 and EN 50397-2
- BS EN 50182, IS 398 Part 2 and Part 4
- IEC 61089 conductor requirements
- Type tested by CPRI Bengaluru and ERDA Vadodara
Exact construction, size and rating must be confirmed against the project cable schedule and current APAR technical data sheet.
From the Brochure

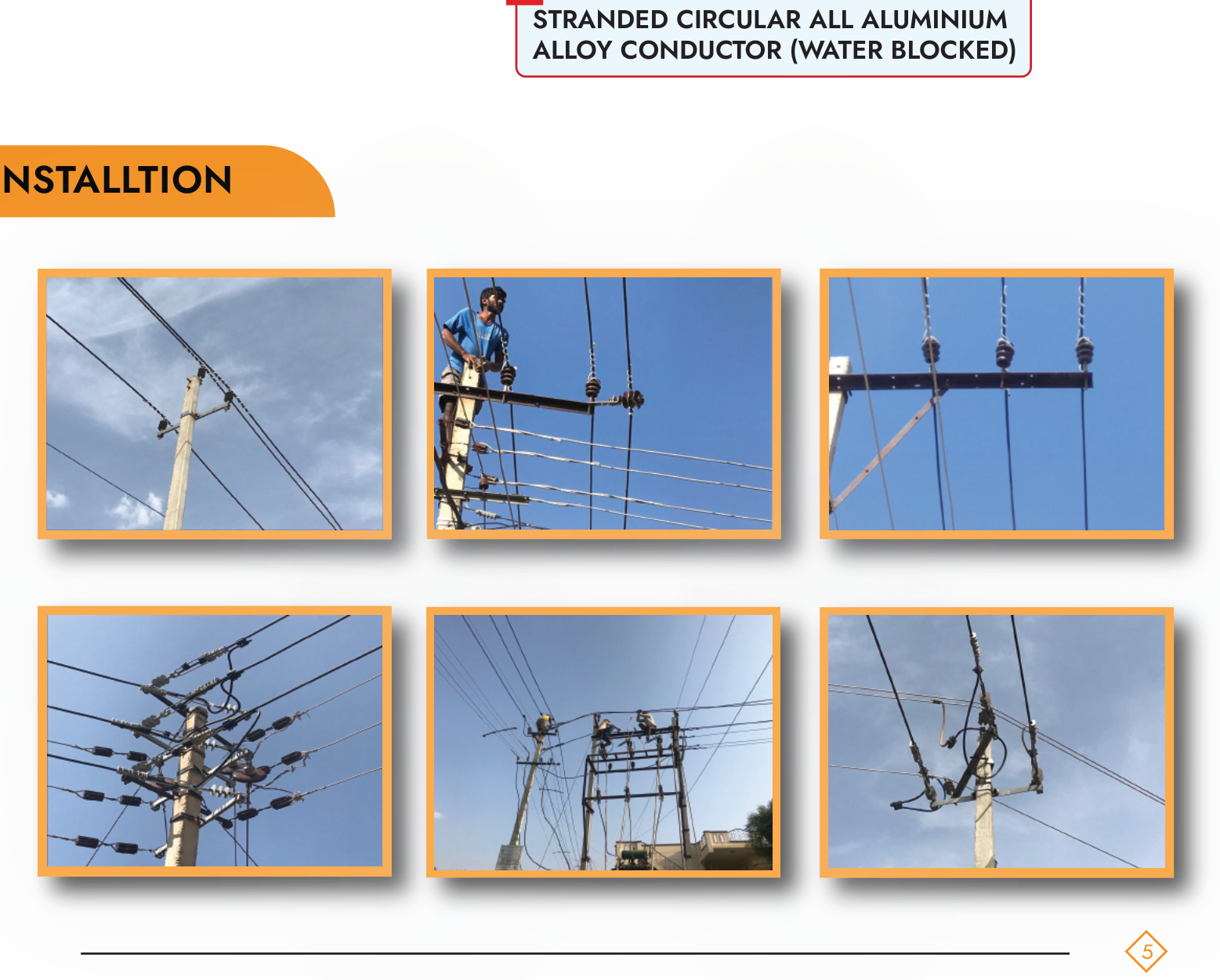

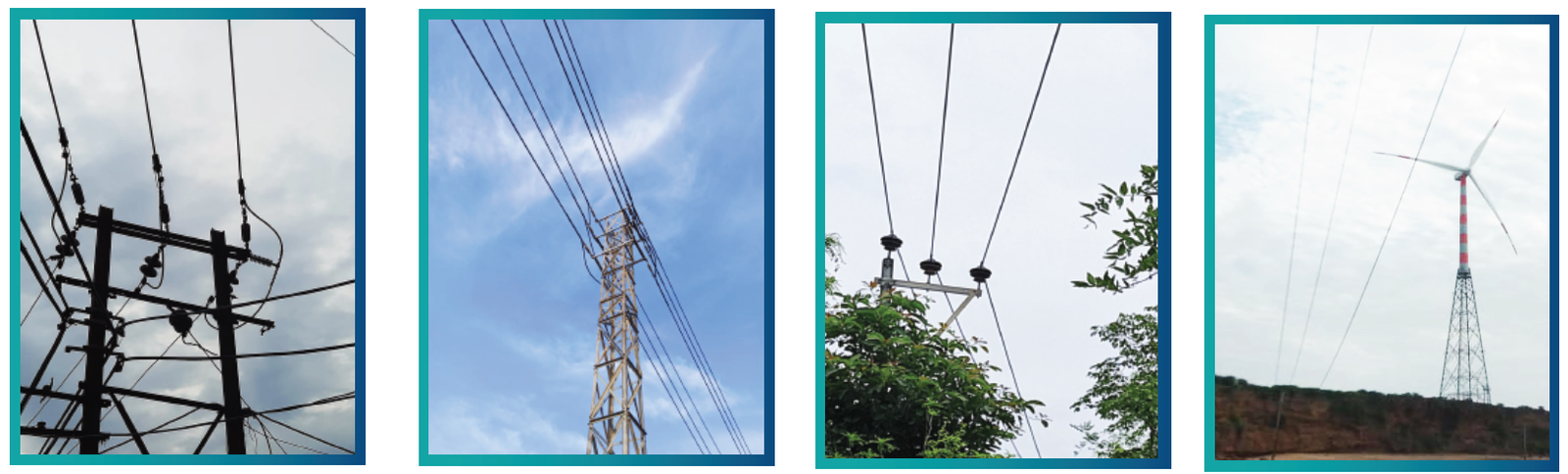

Product & Application Gallery
