Shielded Instrumentation Cables
Pair, triad and quad twisted cables with aluminium mylar shield and tinned copper drain wire.
Automation
Control & Instrumentation Cables
Pair, triad and quad twisted instrumentation cables with overall or individual shielding, plus multicore control cables for process plants and automation systems.
StandardsBS 5308 / IS 1554
FormationPair / triad / quad
ShieldingIndividual and overall
ApplicationSignal and control
Range Overview
What This Category Covers

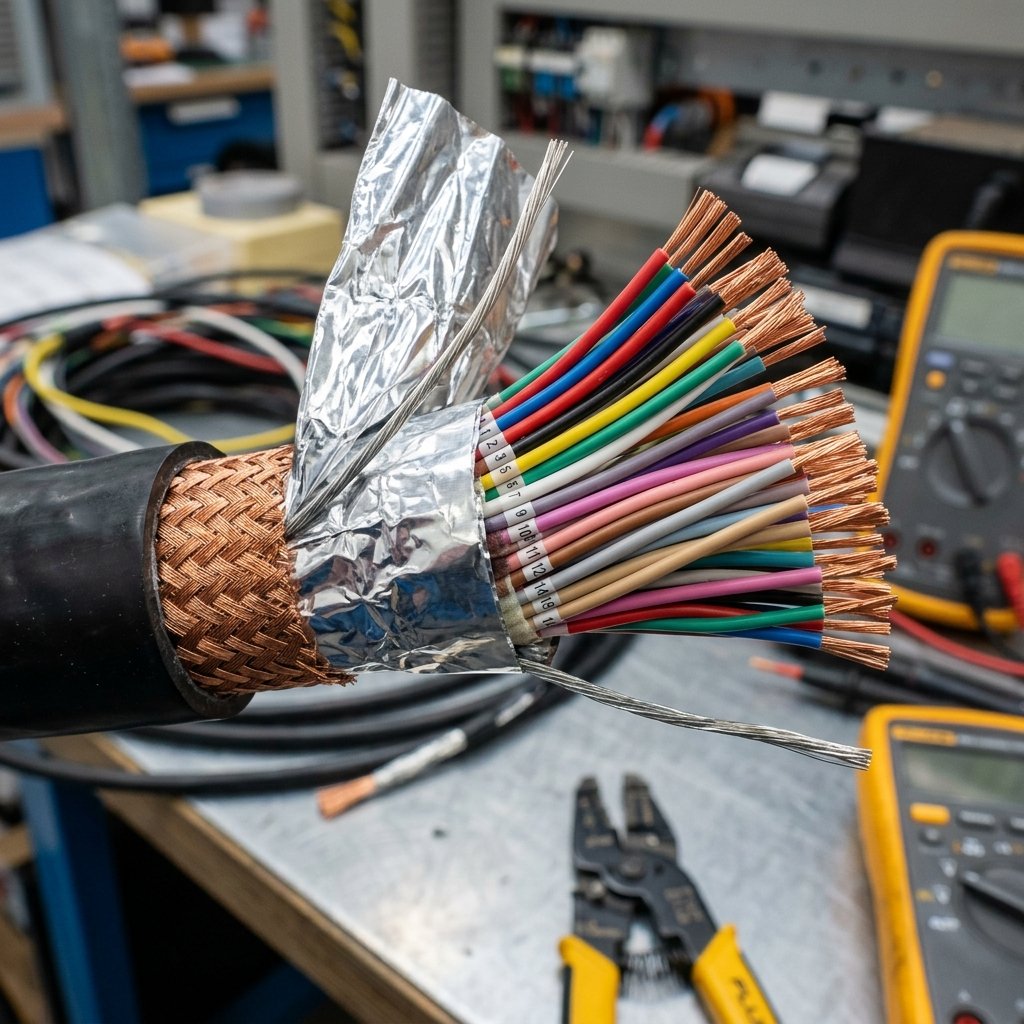

Instrumentation cable protects low-level signals from the electrical noise of the plant around them. Twisted formation cancels induced interference, while aluminium mylar shielding with a drain wire gives the noise a controlled path to earth.
Multicore Control Cables
PVC and XLPE insulated multicore cables for switchgear, MCC and control panel interconnection.
LAN & Data Communication Cables
Structured data cabling for automation networks and building management systems.

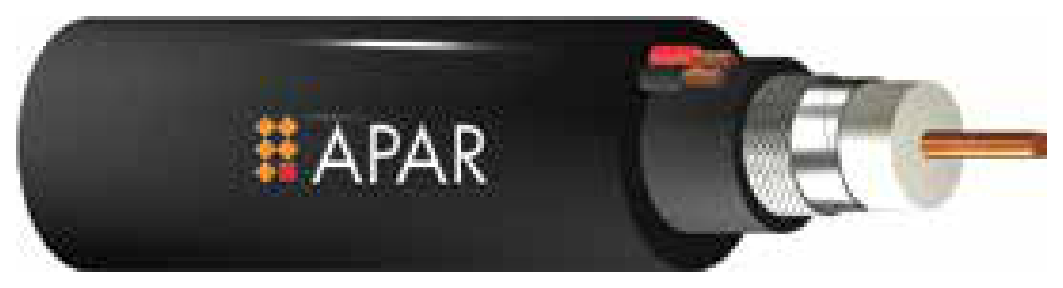

CCTV & Surveillance Cables
Coaxial and composite cables for camera power and video signal runs.
Where It Fits
Typical Applications
- Process control and DCS signal loops
- PLC and automation panel wiring
- Field instrument to marshalling cabinet runs
- Switchgear and motor control centres
- CCTV and building management systems
Selection Notes
Standards & Configuration
- BS 5308 Part 1 and Part 2 — instrumentation cables
- IS 1554 Part 1 — PVC insulated control cables
- Aluminium mylar tape shield with drain wire
- Individual and overall screening options
- Armoured variants for direct burial
Exact construction, size and rating must be confirmed against the project cable schedule and the current APAR technical data sheet.
